A Guide to Selecting the Right Elmendorf Tear Tester

It features a microcomputer system with an advanced calculation method. The operation display combines a touch screen with PC control, allowing you to look up all the datum and statistical results in the mainframe freely. Tear testers, with automated functions, can greatly reduce manual operation intensity and improve testing accuracy.

Core Specifications of Elmendorf Tear Testers

The Elmendorf tear tester selection depends on several fundamental specifications.

Tearing Force Range
The tearing force range is the core indicator of the tester, which determines the types of materials it can test. Common ranges include 1600CN, 3200CN, 6400CN, 9600CN, 12800CN, suitable for materials with different tearing strength levels.

Test Accuracy
Test accuracy reflects the precision of the instrument. This tear tester offers an accuracy of ≤±1％F·S, ensuring reliable test data.

Incision & Rip Parameters
The incision length is fixed at 20±0.2mm, and the rip length is 43mm, which are standardized to meet consistent test requirements.

Sample Clamping
It adopts pneumatic clamp, which can fix samples firmly and avoid displacement during the test, ensuring test stability.

Operation & Output
Equipped with touch screen + PC control, it supports humanized operation with Chinese and English interfaces. It also has a printer for direct output of test reports.

The tear test unit can automatically convert between N, gf, cN and lbs, suitable for different standards requirements. The unit also features an automatic sample cutting system, ensuring the same shape of notch and reducing operation strength.

Which Elmendorf Tear Tester Is Right for You?

There is a list of factors that involve choosing the right fabric tearing strength tester according to your requirement.

Material Types to Be Tested
First, clarify the materials you need to test. Different materials correspond to different tearing force ranges and test standards.

Compliance with Test Standards
It is essential to confirm that the tester supports the standards you must follow, including textile, paper, plastic and non-woven test standards.

Tearing Force Range Requirements
Select the matching tearing force range. Too small a range cannot test high-strength materials, while too large a range reduces test precision.

Operation & Data Management Needs
Choose humanized operation modes, such as touch screen, Chinese-English interface, data lookup and unit conversion, to adapt to different operators.

Cost Efficiency
In terms of cost per test scenario, the multi-range integrated model is more cost-effective. One standard model can replace multiple single-function testers.

Laboratory Workflow Considerations
Automatic sample cutting and printing functions can improve test efficiency. If you have high-volume tests, these functions are particularly important.

Industrial Compliance Standards
You should choose the fabric tearing strength tester that complies with mainstream international and domestic standards to meet market access and customer audit requirements.

Conclusion

Elmendorf tear testers are essential for evaluating the tearing resistance of materials in production and quality control. By selecting the right tester for your laboratory, you can ensure accurate and standardized test results.It is very essential to keep in mind all the factors before buying an Elmendorf Tearing Strength Tester, including material types, test standards, force range and operation functions.

FAQs

What is the Standard Elmendorf Tear Tester Model?

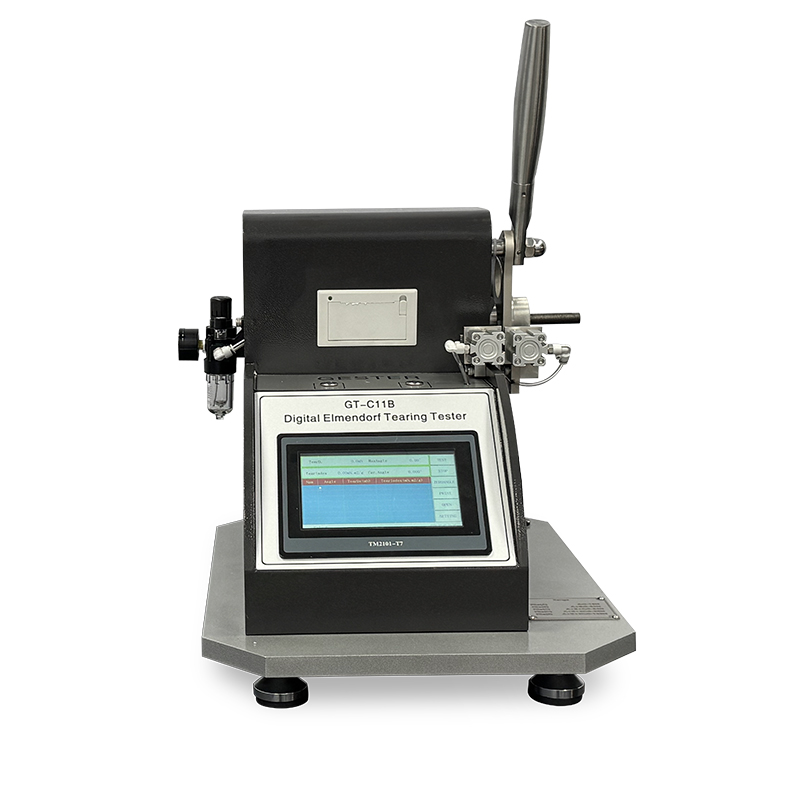

The standard model is GT-C11B, with tearing force ranges of 1600CN, 3200CN, 6400CN, 9600CN, 12800CN, accuracy ≤±1％F·S, pneumatic clamping, touch screen + PC control and printer output.

What Materials Can the Elmendorf Tear Tester Test?
It can test textile, non-woven fabrics, paper, paper board, thin film, ventilation tape, metal sheet materials and other similar sheet materials.

What Standards Does the Elmendorf Tearing Strength Tester Comply with?
Textile: GB/T3917.1, ASTM D1424, DIN 53862, ISO13937-1, ISO4674-2, ISO9290, M&S P29, NF G07-149

Paper: GB/T455, APPITA P400, ASTM D689, BS 4468, CSA D9, DIN 53128, EN 21974, ISO 1974, JIS P8116, PAPTAC D9, SCAN P11, SNV 198482, TAPPI T414, UNI 6444

Plastic: GB/T11999, ISO6383-2, JIS K7128-2

Non-woven: ASTMD5734
