Heat Seal Tester GT-N70A: Your Basic Knowledge Guide
In this guide, you will find all information about the Heat Seal Tester GT-N70A. Whether you want to learn about its working principle, core features, testing standards or industry applications; all information you are looking for is right here.

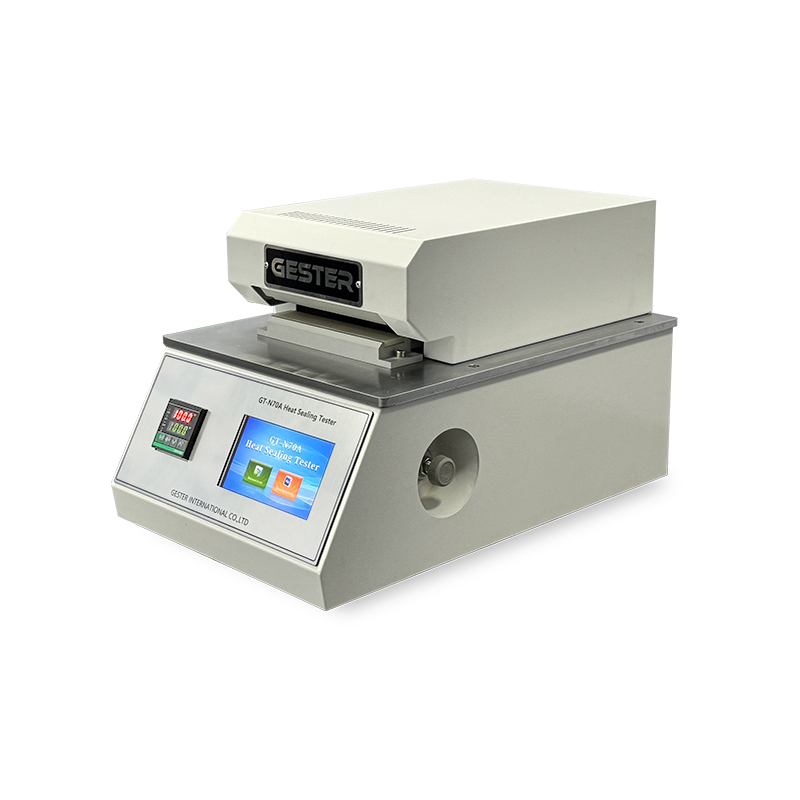

What Is Heat Seal Tester GT-N70A?
The GT-N70A heat seal tester is an essential lab instrument in the food industry, pharmaceutical industry, daily chemical industry, packaging and raw material production industry.
Its working conditions simulate the three key elements of pressure, temperature, and time in the packaging process of the packaging production line. Through this instrument, rapid evaluation of materials can be achieved. After passing the evaluation, the materials can be used on the production line.
Another core application is to conduct heat sealing tests on flexible packaging materials under set temperatures, pressures, and times, so as to conveniently and quickly identify the optimal heat sealing process parameters of the materials, meeting the requirements of packaging and packaging material production enterprises for the optimal heat sealing parameters of materials.
It is mainly applicable to the accurate determination of parameters such as heat sealing temperature, heat sealing time, and heat sealing pressure for materials such as films, composite films, rigid PVC sheets, and pharmaceutical aluminum foils. It is also known as a film heat sealing tester, heat sealing detector, heat sealing performance tester, etc.
Why Heat Seal Testing Matters In Packaging Production
The term heat seal testing is often referenced in the packaging manufacturing industry. It is because reliable sealing performance is critical for product protection, shelf life stability and packaging safety.
Some of the main reasons why you should consider a dedicated heat seal tester like Heat Sealing Tester GT-N70A are:
-
It enables rapid evaluation of packaging materials, and qualified materials can be directly applied to the production line
-
It helps conveniently and quickly identify the optimal heat sealing process parameters of materials
-
It meets the requirements of packaging and packaging material production enterprises for optimal heat sealing parameter confirmation
-
It delivers consistent and repeatable test results, supporting stable quality control in mass production
-
It adapts to various common packaging materials, covering most daily testing demands
Heat Seal Tester GT-N70A Applications
Although you can use the Heat Sealing Tester GT-N70A for general heat seal testing, it delivers exceptional value in the following scenarios:
-
When you need to evaluate material performance before formal production
-
When you need to confirm the optimal heat sealing process parameters for flexible packaging materials
-
When you require accurate heat seal parameter data for quality management
-
When you produce products with strict packaging safety requirements
The testing instrument is suitable for virtually all industries including:
-
Food industry
-
Pharmaceutical industry
-
Daily chemical industry
-
Packaging manufacturing industry
-
Raw material production industry
Testing Standards For GT-N70A Heat Seal Tester
The testing performance and operation specifications of the laboratory heat sealer GT-N70A heat seal tester align with widely recognized industry standards, ensuring data accuracy and result consistency across different laboratories and production facilities.
The instrument conforms to the following standards:
QB/T 2358 (ZBY 28004)
ASTM F2029
YBB 00122003
Working Principle Of Heat Seal Tester GT-N70A
The GT-N70A laboratory heat sealer adopts the heat pressure sealing method, the standard principle for professional heat seal performance evaluation. Below is the detailed working process:
Heat Pressure Sealing Mechanism
Place the sample to be sealed between the upper and lower heat sealing heads. Under the preset temperature, pressure and time, the sealing of the sample is completed. Through repeated tests, it provides guidance for users to find suitable heat sealing parameters.
Precision Pressure Control
To ensure rapid and accurate pressure settings, the heat sealing clamps slowly approach and seal adjacent samples, so that a short sealing time can be accurately reproduced. The heat sealing time can be set arbitrarily according to different testing requirements.
Foot Switch Operation
Press the foot pedal switch, the sample will be pressed, and its heat sealing time is determined by the pressing time of the foot pedal switch. Release the foot pedal switch, and the upper and lower heat sealing knives separate from the pressing state, completing the heat sealing of the sample.
Core Features Of GT-N70A Heat Seal Tester
The GT-N70A heat seal tester integrates multiple precision designs to ensure stable testing performance and convenient operation.
-
Digital display control system and automated equipment for intuitive and efficient operation
-
Digital P.I.D. temperature control, with high temperature control accuracy.
-
Selected heat sealing blade materials and customized heating tubes ensure a uniform temperature across the heat sealing surface.
-
Single-cylinder structure with an internal pressure balance mechanism for stable pressure output.
-
High-precision pneumatic control components, all sourced from global famous brands
-
Anti-scald and leakage protection designs for safer operation.
-
Meticulously designed heating elements with uniform heat dissipation and long service life
-
Automatic and manual working modes optional, enabling highly efficient operation.
-
Operation panel specially optimized according to ergonomic principles for convenient use.
Conclusion
The GT-N70A heat seal strength tester provides accurate, reliable heat sealing performance testing, helping users optimize packaging processes and ensure consistent seal quality.
