Comprobador de sellado térmico GT-N70B

El probador de sellado térmico GESTER es esencial para diversas industrias, incluida la inspección de calidad, productos farmacéuticos, investigación, embalaje, fabricación de películas delgadas, producción de alimentos, etc.

Marca:
GESTER
Artículo No.:
GT-N70B
Orden (MOQ):
1

Pregunte ahora

Detalle del producto

Heat Sealing Tester GT-N70B

Product Introduction

Application :

laboratory heat sealer is mainly suitable for precise determination of heat sealing temperature, time and pressure of plastic film, composite film bag, PVC hard sheet, medicinal aluminum foil and other materials.

Standards

QB/T2358(ZBY28004), ASTMF2029,

YBB00122003-2015, YBBOO152002-2015, YBB00212005-2015, YBB00232005-2015

YBB00222005-2015, YBBOO82004-2015, YBB00202005-2015, YBB00242002-2015

Feature

Touch screen can display temperature and pressure value in real time.
Unique user level three privilege management function to ensure data integrity and normalization.
Heat Sealing Tester equipped with a mini printer to print the measured thermal, pressure and thermal intensity values for each measurement.
The instrument can store not less than 100 sets of data, supporting data query.
The system program has the function of ISP online upgrade, which can provide personalized service.
The pressure adjustment adopts the original imported sensing system, which greatly improves the testing accuracy.
Digital P.I.D. temperature control, full automation test of equipment.
Unique contact timing design, more accurate test time.
The sealed head of aluminum can ensure the uniformity of heating on the hot cover.
Independent temperature control of upper and lower heat heads.
Dual mode of manual and foot switch, humanized structure design.

Key Specification

Model	GT- N70B
Sealing temperature	RT ~ 250℃ , control accuracy : ±0.2℃
Heat sealing time	0.01s ～ 999.99s
Heat sealing pressure	0.03MPa ～ 0.7MPa
Heat sealing area	330mm×15mm 【 Different heat sealing area can be customized. 】
Heat sealing form	Upper and lower heads double heating or single heating.
Shape size	550mm * 420mm * 650mm(L * W * H) n
Weight	48kg
Gas pressure	≤0.7MPa
W orking environment	Temperature: 15℃-50℃ Humidity: Highest 80%, Non condensation
Power supply	1 phase 220V, 50Hz

Accessories

Option accessories	1set	Air compressor
Option accessories	1pc	Sampling knife

Deja un mensaje

Si está interesado en nuestros productos y desea conocer más detalles, deje un mensaje aquí, le responderemos lo antes posible.

Tema : Comprobador de sellado térmico GT-N70B

Etiquetas relacionadas :

Categorías

nuevos productos

Productos relacionados

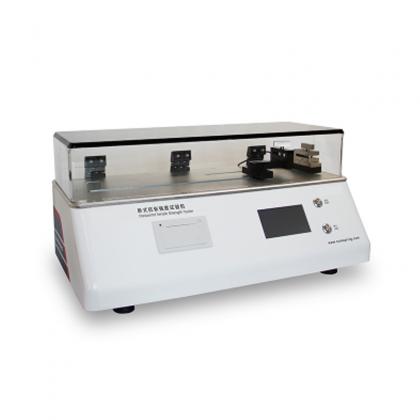

Comprobador de sellado térmico GT-N70A
