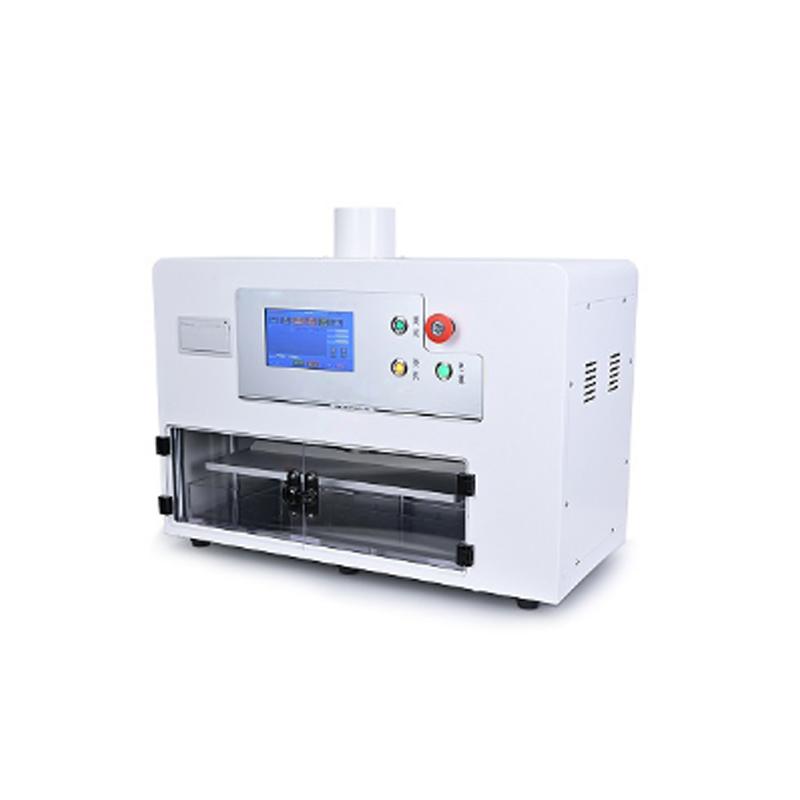

Leak and Sealing Tester GT-N69C
Leak and Sealing Tester GT-N69C Product Introduction Application It is used for quantitative determination of sealing strength, heat sealing quality, as well as expansion pressure and sealing leakage performance of the whole bag, quantitative determination of sealing performance of various plastic anti-theft caps, quantitative determination of the overall sealing performance of various flexible tubes, pressure strength, cap connection strength, debuttoning strength, sealing strength of heat sealing edges, and tying strength, etc.; meanwhile, it can also be used to quantitatively determine the indicators of compressive strength and breakage strength of materials used for flexible packaging bags, cap torque sealing indicators, cap connection debuttoning strength, material stress strength, as well as the sealing performance of the whole bottle body, compressive strength and breakage strength. It can also evaluate and analyze the indexes of compressive strength and breaking strength of the materials used for flexible packaging bags, the indexes of cap torsion sealing, cap connecting and unbuttoning strength, the stress strength of the materials, as well as the indexes of the whole bottle body's sealing, compressive resistance and breaking resistance. Standards: ISO 11607-1, ISO 11607-2, ASTM F1140, ASTM F2054, GB/T 17876-2010, GB/T 10440, GB 18454, GB 19741, GB 17447, GB/T 17876, GB/T 10004, BB/T 0025, QB/T 1871, YBB 00252005, YBB 00162002 Principle: The sample will be fixed to a specific test tooling, the system adopts the principle of positive pressure test, controlled by embedded high-speed microcomputer chip, manually free to choose the rupture test, creep test, creep to rupture test, pressure preservation test or customized * test mode, the sample for the test of the stamping inspection test, the system real-time display of the test data and test curves. Feature Mechanical control system is stable, accurate, efficient and easy to operate System adopts positive pressure method testing principle, expansion inhibition, expansion non-inhibition of dual test methods to meet the multiple tasks Anti-theft cap detachment, leakage, end cap detachment, bottle internal pressure, flexible packaging rupture test, creep test, creep to rupture test a variety of test modes to meet the user's different testing needs Test range can be selected, non-standard fixtures can be customized. Key Specifications Model GT-N69C Test range 0 ～ 600 KPa; 0 ～ 87 psi (standard range, other ranges optional) Inflatable head Φ6 MM (standard accessory) Φ4 MM, Φ1.6 MM, Φ10 (optional accessory) Air pressure 0.4 MPA ~ 0.9 MPA Air supply connection Φ6 MM Polyurethane Tubing External dimension 450× 385×235mm (L×W×H) Test stand dimensions 380 × 260×365mm (L×W×H) Net weight 10 KG
